BL-09 FTC

FRAME TO CAB CLAMPING SYSTEM

Body Loc’s  Solution for Frame-to-Cab Clamping

for the 2009 Ford F-150 Our Clamping System

creates a solid lock between cab and frame,

isolates body mounts from pull forces

 and allows for “Cab-On” pulls

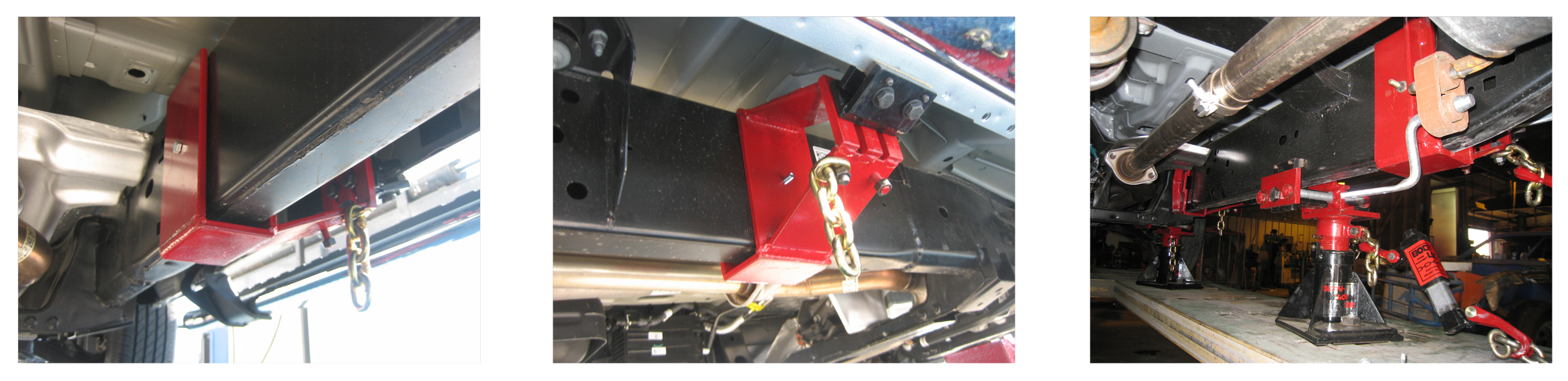

•    Remove Two Muffler Bolts and Electrical Box

• (It is not necessary to remove gas tank)

• Mount Clamps in Oblong Holes on Frame that are 45" Apart

•  Install  48” Linkage Bar

• Tighten 4” Bolt While Holding Saddle Up

• Adjust Clamp Upward and Tighten

• Install Top Halves of Sheet Metal Clamps

• Tighten Sheet Metal Clamps

• When Pulling Lengthwise Counter Chain Over Block or Jack Stand

   When Making Down Pull, Block Under Saddle

• The determination of “Repair” or “Replace” is now more critical then ever with the introduction of Ultra High Strength Steel (U.H.S.S.) into the auto body repair industry.

• Our system is an affordable, easy, clamping system that works in unison with your existing repair methods and machines.

• “Cost of Repair” is everyone’s concern. Repairs need to be quick and simple, and keeping “TOTALS” to a minimal is paramount.

• During a collision, indirect damage or “Carry-Over” to adjacent parts occurs. This will be amplified now that U.H.S.S. parts are incorporated into body structures.

• Parts suffering “Carry-Over Damage” that have only been curved or bowed, can be straightened without changing the molecular properties on the repaired part.

• If kinks or cracks are found in any U.H.S. part, then a change at the molecular level has occurred and rendered the parts unrepairable and the parts must be replaced.

• Heat is normally not recommended in the repair of any U.H.S.S. part.

• If pulls are made against body mounts, even light pulls, and the cab is not anchored, due to the strength of U.H.S. structures, the body mounts can yield and secondary damage in floor pans can occur.

Hints: Determine what materials you are working with such as U.H.S.S., DP980, Martensitic, and Born H.S. Steel) and follow O.E.M. recommendations.

Please contact us if you are looking for affordable answers to this problem.

f-150 cab repair update

BODY LOC & CAR-O-LINER SYSTEMS,

CLAMP THE UHSS PINCH WELD SOLID!

DON'T WASTE YOUR MONEY ON A

POINT & HOLE METHOD OF CLAMPING FOR UHSS.

FOR POINT & HOLE TO WORK,

THE POINT MUST MAKE A DIMPLE IN THE HOLE! (see Fig. 3)

CLAMP JAWS  FOR UHSS ARE EXPENSIVE TO MAKE.

BODY LOC DEVELOPED AND MAKES THESE SPECIAL CLAMP JAWS.

Body Loc’s Special Serrated Biting Surface Jaws

REMEMBER

BODY MEN DON’T LIKE A CLAMPING SYSTEM

WITH EXCESSIVE PARTS AND EXCESSIVE TIME TO HOOK UP!

TRY OUR SYSTEM, IF IT DOESN'T SET UP QUICKER

AND HOLD AS SOLID AS ANY COMPETITOR,  SEND IT BACK.

BL-09FTC  SET UP GUIDE

All Four Clamps are slightly different, separate and identify to insure

 installation at the correct position.  Labels indicate front or rear and

 passenger or drivers side. It is critical that the right clamp be placed

in the  correct position or fitting problems will occur.

Toll: 800-510-8564 · web: www.bodyloc.com · email: info@bodyloc.com

or contact your local representative
